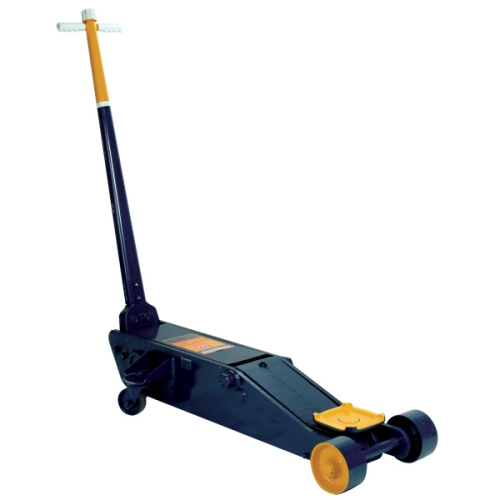

| DESCRIPTION: HEAVY DUTY 10 TON SERVICE JACK | HW93660; MADE IN USA | |||||||||||||
| 1: HW93660;
Direct Replacement for 93660; W93660, 91-660 and YA-660. 2: Dual Pump Action provides speed to contact the load and power to lift 3: Handle Adjusts to Three pumping Positions 4: Dual Piston Action provides speed to Contact and power to lift. 5: Extra Long Chassis reaches under low overhangs. 6: Large Handle Knob provides find load release control. 7: "T" Handle permits easier maneuvering. 8: Low Handle Effort (even at near capacity loads) greatly reduces operator fatigue. 9: Large Forged Steel Lifting Cap adds durability. 10: Large full swivel lifting cap and ball bearing casters make positioning easy. 11: Rugged Solid Steel side plates add strength and prevent distortion. 12: Full Swivel rear casters and Lifting cap ease positioning. 13: Forged Steel Hydraulic Unit Base is sealed for long life, & reliabiliity. Keeps out dirt & grime. 14: Cast Lift Arm for Heavy Loads 15: Extra Long Chassis(53-1/2"/135.9CM) for Hard to Reach Points. 16: Automatic Valve prevents overloading. 17: Hydraulic Repair Kits and Overhaul Kits Available 18: Two Year Warranty from the Manufacturer. 15: MADE IN USA 19: Price????? 20: Download PDF file. |
 |
|||||||||||||
| MODEL | CAP | MIN HEIGHT | MAX HEGHT | REACH | POWER RAISE | SADDLE DIA | HANDLE LENGTH | CHASSIS LENGTH | CHASSIS HEIGHT | WHEEL TO WHEEL WIDTH | FRONT WHEEL DIA. | REAR CASTER WHEEL DIA | MIN. PSI. FOR RATED LOAD | GROSS WEIGHT |
| HW93660 | 10 TON | 6-3/4"" | 25-1/2" | 18-3/4" | 8-1/2" | 56" | 53-1/2" | 9-1/2" | 20-1/2" | NA | 430LBS | |||
| 195KG | ||||||||||||||
