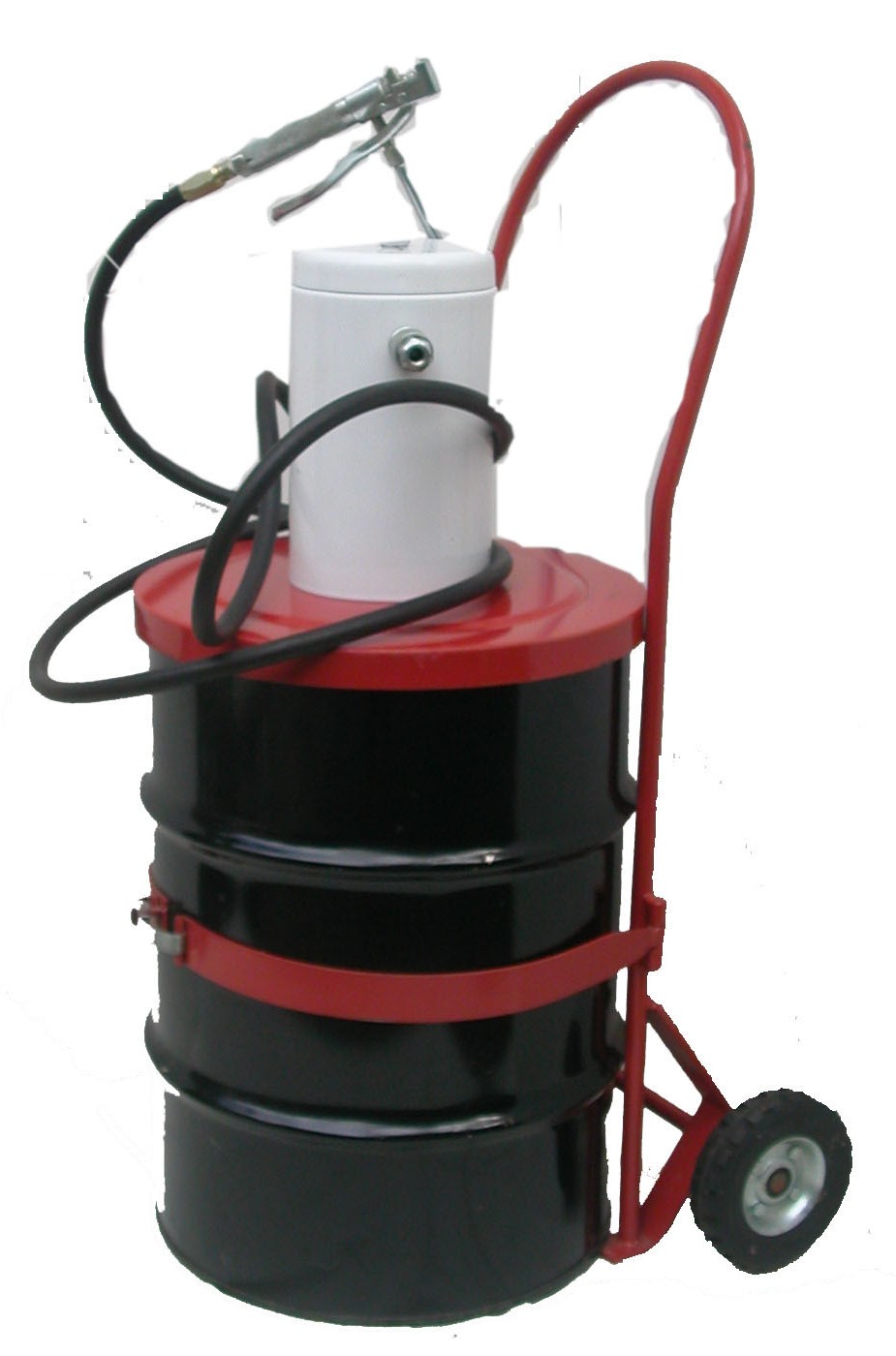

Self Contained Grease Pump Assembly w/ Hand Truck & Drum 1. Includes 50:1 Double
Acting High Pressure Pump(LT83513ME) provides uniform pressure and delivery on the up and
down stroke
2. 10'(3.05mts) High Pressure Grease Delivery Hose(LT75120ME)
3. High Pressure Grease Delivery Control Valve(LT740ME)
4. Rapid Disconnect Coupler(815ME) & Air Nipple (11660ME) & Muffler (LT2601)
5. Pump Specifications: Pump Tube Length 18-5/8"
(47.3CM) Industrial Style Pump; Pump Tube DIA: 1.0”(2.54CM); Air Motor Height:
11.0"(27.94CM); Overall Height of Unit: 29-5/8"(75.3CM)
6. Follower Plate; Need to order separately depending on your
application. (Please note the specifications of the drum).
7. Air Motor Cover in White (91407ME)
8. Steel Drum Flat Cover; fits over the top of the drum;
Cover Diameter: ID: 16-1/8"(40.96CM); OD: 16-1/4"(41.28CM); Opening (Downtube
Diameter Opening 2-1/4"(5.72CM)) w/ 4 mounting holes to attach base of pump to the
cover.
10. Single One Piece Contruction Hand Truck with
6"(15.24CM) Diameter Hard Rubber Wheels and Heavy Duty Metal Clamping Strap to hold
Barrel securely in place.
11. Steel Drum Included. Dimensions of the Drum: OD: 16-1/8"(40.9CM); ID:
15-1/4"(38.7CM); Inside Height of Drum: 21.0"(53.6CM); Outside Height:
21-3/4"(55.2CM)
12. These high pressure Grease Pumps incorporate a 20 cu. in. air motor design.
13. Output: 80 cu in/minute (45 oz) of Grease at 100PSI
NLGI#2 at 70 Degrees ambient temperature (.35 cu in/cycle)
14: New Downtube Packings made of Viton / Teflon for longer
life
15. Air Inlet 1/8” NPT (f); Lube Outlet: ¼” NPT (f)
16. Maximum Air Pressure: 150PSI; Recomended: 80-100PSI;
Maximum Grease Pressure: 7500PSI; Recomended: 5000 PSI; Note: Pump life reduces
considerably if operating above the recommended air pressure.
17. One Year Warranty against Defective Materials,
Workmanship and Labor
18. All Pumps are Pressure Tested Statically and Dynamically in
NLGI#2 Grease at the Factory for Output, Pressure, Performance and Quality.
19: Additional ACC Available: LT82103ME Grease Strainer for
Pump Tube; “Z” Swivel LT5253ME for Control Valve;
LT66645ME Locking Swivel 1/4"(m) x 1/4"(f) ;
20: Optional Hoses Available(See
Below):
LT75120ME 10ft(3.04mtrs) X ¼” HP Grease Hose w/ 1/4"NPT(m) couplings
LT75240ME 20ft (6.09 mtrs)X ¼” HP Grease Hose w/ 1/4"NPT(m) couplings
LT75360ME 30ft ((9.14mtrs)X ¼” HP Grease Hose w/ 1/4"NPT(m) couplings
LT75480ME 40ft (12.2mtrs)X ¼” HP Grease Hose w/ 1/4"NPT(m) couplings
LT75600ME 50ft (15.2mtrs) X ¼” HP Grease Hose w/ 1/4"NPT(m) couplings
21: Complete Repair Kits & Parts Available(See Below):
R83054M: Simple Repair Kit for Grease Pumps LT82050ME
R83054ME; Complete Repair Kit for Grease Pumps
R83000ME: Air Motor Repair Kit for LT82050ME
R83001ME: Down Tube Repair Kit for LT82050ME
22: Other Information: BOX Weight and Dimensions: Weight:
55LBS (24.9KG) ;
Length: 25.0"(63.5cm) X Width:25.0"(63.5cm) X Height: 39.0"(100cm)
23: Price
24: Download pdf file on
LT346PMEX
