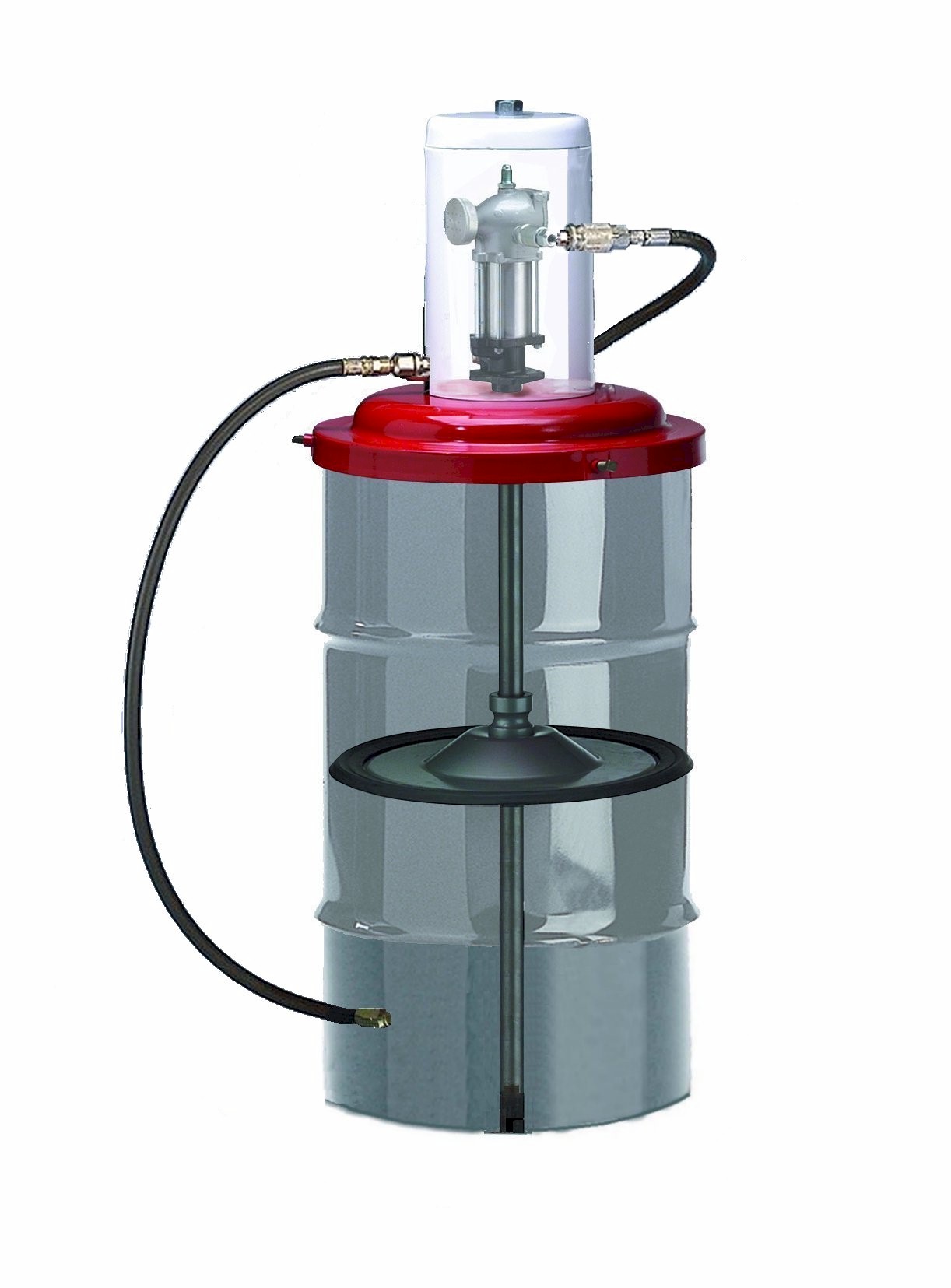

Description: 120LB(16Gallon)(54.4KG) Stationary Drum Grease Pump
Assembly: 1. Includes 50:1
Double Acting High Pressure Pump(LT82050ME) provides uniform pressure and delivery on the
up and down stroke.
2. 6'(1.85mts) High Pressure Grease Delivery Hose(LT75072ME).
3. 3ft (.92mtr) x 1/4" Air Hose.
4. High Pressure Grease Delivery Control Valve(LT740ME.)
5. Rapid Disconnect Coupler(815ME) & Air Nipple (11660ME).
6. Air Motor Cover in White (91407ME) & Air Motor
Muffler(LT2601ME)
7. High Pressure Volume Union Elbow for Grease Hose
Connection (LT80202ME).
8. Follower Plate (with outer rubber wiping ring on the drum
and inner rubber wiping ring on the pump tube) DIA 1.0” (LT84780ME) assures postitive
prime and vacuum at low temps (prevents cavitation).
9: Follower Plate Solid Molded Rubber (LT84780M) Optional
Available.
10. Steel Drum Cover with screw downs for 120 LB
Drum(45733ME) Cover Diameter: 15-1/16"(38.42CM) Opening (Downtube Diameter Opening
2-1/4"(5.72CM)) w/ 4 mounting holes to attach base of pump to the cover.
11. Steel Drum Not Included.
12. Pump Specifications: Pump Tube Length 27-3/8"
(69.5CM) made for 120 lb Drum & 1.0” (2.54CM)Diameter ; Air Motor Height:
11.0"(27.9CM); Overall Height: 38-3/8"(97.47CM).
13. These high pressure Grease Pumps incorporate a 20 cu. in. air motor design.
14. Output: 80 cu in/minute (45 oz) of Grease at 100PSI
NLGI#2 at 70 Degrees ambient temperature (.35 cu in/cycle).
15. Air Inlet 1/8” NPT (f); Lube Outlet: ¼” NPT (f).
16: New Downtube Packings made of Viton / Teflon for longer
life.
17. Maximum Air Pressure: 150PSI; Recomended: 80-100PSI;
Maximum Grease Pressure: 7500PSI; Recomended: 5000 PSI; Note: Pump life reduces
considerably if operating above the recommended air pressure.
18. One Year Warranty against Defective Materials, Workmanship and
Labor.
19. All Pumps are Pressure Tested Statically and Dynamically in
NLGI#2 Grease at the Factory for Output, Pressure, Performance and Quality.
20. Additional ACC Available: LT82103ME Grease Strainer for
Pump Tube; 5253ME “Z” Swivel for the Control Valve; LT66645ME Locking Swivel
1/4"(m) x 1/4"(f) ;
21: Optional Hoses Available(See Below):
LT75120ME: 10ft(3.04mtrs) X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT75240ME 20ft (6.09 mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT75360ME 30ft ((9.14mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT75480ME 40ft (12.2mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT75600ME 50ft (15.2mtrs) X ¼” HP Grease Hose w/ 1/4" NPT(m).
22: Complete Repair Kits &
Parts Available(See Below):
R83054M: Simple Repair Kit for Grease Pumps
R83054ME: Complex Repair Kit for Grease Pumps
R83000ME: Air Motor Repair Kit for LT82050ME.
R83001ME: Down Tube Repair Kit for LT82050ME.
23: Other Information: Weight and
Dimensions: Box Weight: 40LBS (20.9KG) Box DIMS: Length 39.0"(100cm)XWidth
19-1/2"(49.5cm)XHeight 8.0"(20.32cm).
