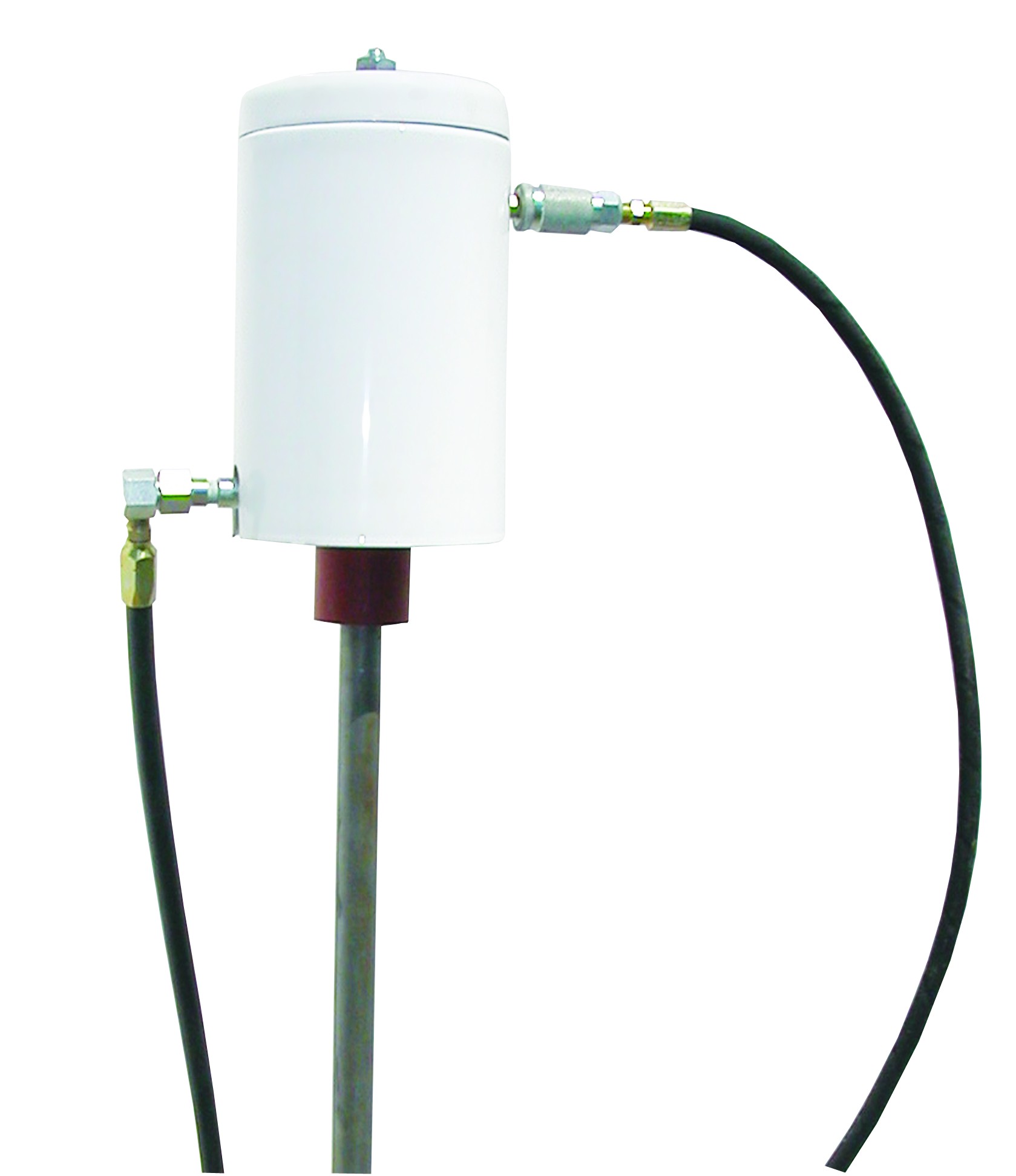

400LB(55 Gallon)(181.4KG) Drum Grease Pump Assembly: Includes: (Unit
does not include Drum Cover (LT81523ME)) 1: 50:1 Double Acting Heavy Duty High Pressure Pump
(LT82054ME) provides uniform pressure and delivery on the up and down stroke
2: Rapid Disconnect Air Coupler (815ME) & Air Nipple (11660ME) 1/8"(M)
3: 3ft (.92mtrs) x 1/4" Air Connecting Hose (LT72036ME)
4: 4ft (1.23mtrs) High Pressure Grease Hose(LT75048ME)
5: High Pressure Volume Union Elbow 1/4"(F) x 1/4"(M) (82202ME)
6: Air Inlet 1/8" NPT (F); Lube Outlet: ¼" NPT (F)
7: Steel Pump Cover (White)(91369ME) & Air Motor Muffler (LT2601ME)
8: Pump Specifications: Pump Tube Length 33-15/16" (86.20CM) made for 400 lb Drum
& 1.0" (2.54CM)Diameter; Air Motor Height: 11.0"(27.94CM); Overall Height of
Unit: 44-15/16"(114.2CM)
9: The LT82054ME high pressure Grease Pump incorporates a 20 cu. in. air motor design.
10: Output: 80 cu in/minute (45 oz) of Grease at 100PSI NLGI#2 at 70 Degrees ambient
temperature (.35cu in/cycle)
11: New Downtube Packings made of Viton / Teflon for longer life
12:
Maximum Air Pressure: 150PSI; Recomended: 80-100PSI; Maximum Grease Pressure: 7500PSI;
Recomended: 5000 PSI; Note: Pump life reduces considerably if operating above the
recommended air pressure.
13: One Year Warranty against Defective Materials, Workmanship and Labor
14: All Pumps are Pressure Tested Statically and Dynamically in Grease for performance and
output.
15: Additional Accessories Available: LT82103ME Grease Strainer for Pump Tube; Follower
Plate LT83366ME; Does not include follower plate; must order separately
22. Complete Repair Kits & Parts Available(See Below):
R83054M: Simple Repair Kit for Grease Pumps
R83054ME: Complex Repair Kit for Grease Pumps
R83000ME: Air Motor Repair Kit for LT82050ME.
R83001ME: Down Tube Repair Kit for LT82050ME.
21. Optional Hoses Available(See Below):
LT75120ME: 10ft(3.04mtrs) X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT75240ME 20ft (6.09 mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT75360ME 30ft ((9.14mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT75480ME 40ft (12.2mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT75600ME 50ft (15.2mtrs) X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT76480BME; 40FT x 3/8" HP Grease Hose 3/8"NPT(m)Threads
LT76480AME; 40FT x 1/2" HP Grease Hose 1/2"NPT(m)Threads
LT76600BME; 50FT x 3/8" HP Grease Hose 3/8"NPT(m)Threads
LT76600AME; 50FT x 1/2" HP Grease Hose 1/2"NPT(m)Threads
23: Other Information : Weights and
Dimensions: Weight: 26LB (11.8KG) ; Box Dimensions: (Pump): Length:8"(20.3CM) X
Width:11"(27.9CM) X Height: 49-1/2"(125.8CM) .
24: Price
25: Download Complete pdf file
on LT926-1ME
For Additional Information or Technical Information, send us an email from this web
page at the address below. Please specify the Model Number. Please include your
name, address, city, state, zip, Telephone Number and Fax Number in the email and we will
send you the requested Information.
