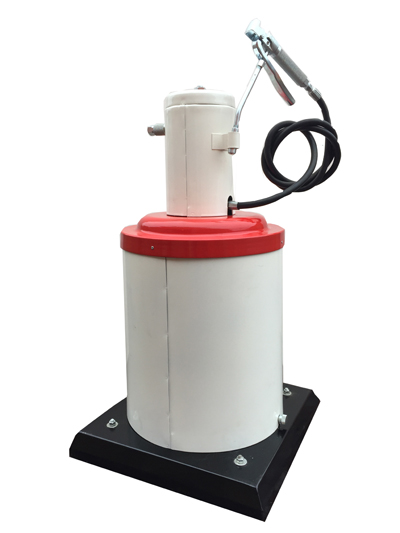

1: Includes 50:1 Double Acting High Pressure
Pump(83513ME) provides uniform pressure and delivery on the up and down stroke
2: 6'(1.85mts) High Pressure Grease Delivery Hose(LT75072ME)
3: High Pressure Grease Delivery Control Valve(LT740ME)
4: Rapid Disconnect Coupler(815ME) & Air Nipple (11660ME) & Air Motor
Muffler(LT2601ME)
5: Pump Specifications: Pump Tube Length
18-7/8"(47.94CM) & DIA 1.0"(2.54CM) made for 25-50 lb Pails and Drums; Air
Motor Height: 11.0"(27.94CM); Overall Height of Unit: 28-7/8"(73.34CM)
6: Follower Plate (LT91500ME) w/ Rubber Outer Wiping Ring for Conical Pails;
(1.0"(2.54CM) Diameter) assures postitive prime and vacuum at low temps (prevents
cavitation)
7: Other Follower Plates Available: LT84775ME Molded Rubber
Follower Plate (Diameter 1.0"(2.54CM)); LT91500M: Solid Steel Follower Plate
(Diameter 1.0"(2.54CM))
8: Air Motor Cover in White (91407ME)
9: Steel Drum Cover riveted to the decorative sheet metal
cannister; Cover Diameter: 15-1/8"(38.42CM) Opening (Downtube Diameter Opening
2-1/4") w/ 4 mounting holes to attach base of pump to the cover.
10: White Metal Cannister measuring 18.0"(45.72CM) x 15-1/8"(38.42CM)
11: Roll-a-Round Base with 4 Heavy Duty Rubber Swivel Casters
(2-1/2"(5.72CM) x 3/4"(1.91CM)) for easy manuverability(LT81319ME)
12: Output: 80cu in/minute (45 oz) of grease at 100PSI of
NLGI #2 at 70 Degrees ambient Temperature (.35cu in/cycle)
13: New Downtube Packings made of Viton / Teflon for longer
life
14: Air Inlet 1/8"NPT(f); Lube Outlet: 1/4"NPT(f);
15: These High Pressure Grease Pumps incorporate a 20 cu in Air Motor Design .
16: Maximum Air Pressure: 150PSI; Recomended: 80-100PSI;
Maximum Grease Pressure: 7500PSI; Recomended: 5000 PSI; Note: Pump life reduces
considerably if operating above the recommended air pressure.
17: One Year Warranty against Defective
Materials, Workmanship and Labor
18: All Pumps are Pressure Tested Statically and Dynamically in
NLGI#2 Grease at the Factory for Output, Pressure, Performance and Quality.
19. Additional Accessories Available: LT82103ME Grease
Strainer for Pump Tube; LTA5253ME “Z” Swivel for the Control Valve; LT84191ME
Band Dolly; LT66645ME Locking Swivel 1/4"(m) x 1/4"(f)
20. Complete Repair Kits Parts Available:
R83054M: Simple Repair Kit for Grease Pumps LT83513ME
R83054ME: Complete Repair Kit for Grease Pumps
R83000ME: Air Motor Repair Kit for LT83513ME
R83001ME: Down Tube Repair Kit for LT83513ME
22. Other Information: Weight and
Dimensions: BOX Weight: 55LBS (24.95KG); BOX DIMS: Length: 20.5"(52.07CM) X
Width:20.5"(52.07CM) X Height: 34.5"(87.63CM)
