Description: Bulk Fill Pail Pump with

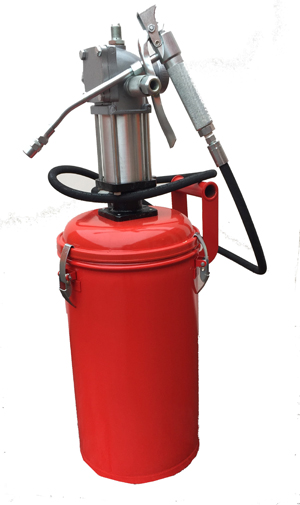

Steel Container Grease Pump Assembly w/ Follower Plate (self enclosed unit) 1. Includes
50:1 Double Acting High Pressure Pump(LT82716ME) provides uniform pressure and delivery on
the up and down stroke
2. 6'(1.85mts) High Pressure Grease Delivery Hose(LT75072ME)
3. High Pressure Grease Delivery Control Valve(LT740ME)
4. Rapid Disconnect Coupler(815ME) & Air Nipple (11660ME) & Air Motor
Muffler(LT2601ME)
5. Steel Container Size: 16"(40.6CM) High by DIA 9 1/2"(24.1CM)
Painted in Red
6. Pump Specifications: Pump Tube Length
15-3/4"(40.01cm) & Diameter 1.0"(2.54CM); Air Motor Height:
11.0"(27.9CM); Overall Height: 28-1/2"(72.4CM)
7. Follower Plate made of steel that fits the inside of the
container.
8. 3 Rigid Steel Clamps that clamp the cover firmly in place on the container
9. Steel Drum Cover with screws that firmly fasten the cover
to the base of the pump.
10: Easy Carry Handle welded to the side of the container
makes for easy transportability
11. Output: 80cu in/minute (45 oz) of grease at 100PSI of
NLGI #2 at 70 Degrees ambient Temperature (.35cu in/cycle)
12. Air Inlet 1/8"NPT(f); Lube Outlet: 1/4"NPT(f);
13. These High Pressure Grease Pumps incorporate a 20 cu in Air Motor Design
14: Application: Construction Sites, Maintenance, where bulk
filling is an option and portability is priority contamination is a problem.
15: New Downtube Packings made of Viton / Teflon for longer
life
16. Maximum Air Pressure: 150PSI; Recomended: 80-100PSI;
Maximum Grease Pressure: 7500PSI; Recomended: 5000 PSI; Note: Pump life reduces
considerably if operating above the recommended air pressure.
17. One year Warranty against Defective Materials, Workmanship and
Labor
18. All Pumps are Pressure Tested Statically and Dynamically in
NLGI#2 Grease at the Factory for Output, Pressure, Performance and Quality.
19. Additional Accessories Available:
LT82103ME Grease Strainer for Pump Tube; LTA5253ME “Z” Swivel for the Control
Valve; LT84191ME Band Dolly; LT66645ME Locking Swivel 1/4"(m) x 1/4"(f)
20. Optional Hoses Available(See Below):
LT75120ME 10ft(3.04mtrs) X ¼” HP Grease Hose w/ 1/4" NPT(m) couplings
LT75240ME 20ft (6.09 mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m) couplings
LT75360ME 30ft ((9.14mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m) couplings
LT75480ME 40ft (12.2mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m) couplings
LT75600ME 50ft (15.2mtrs) X ¼” HPGrease Hose w/ 1/4" NPT(m) couplings
21. Complete Repair Kits Parts Available:
R83054M: Simple Repair Kit for Grease Pumps LT82716ME
R83054ME: Complete Repair Kit for Grease Pumps
R83000ME: Air Motor Repair Kit for LT82716ME
R83001ME: Down Tube Repair Kit for LT82716ME
22. Other Information: Weight and Dimensions: BOX Weight:
30LBS (13.6KG); BOX DIMS: Length: 30.5"(77.5cm) X Width:14"(35.6cm) X Height:
13"(33.1cm)
23: Price
24: Download Complete Technical
pdf file on LT987ME
