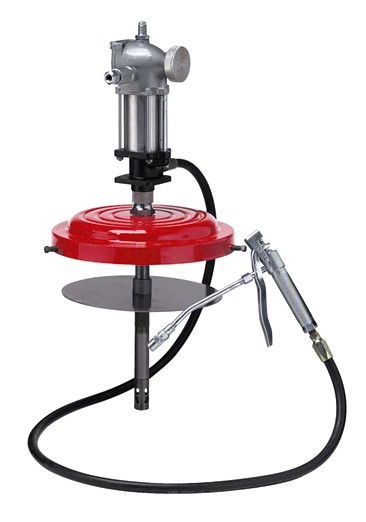

1. Includes 50:1 Double
Acting High Pressure Pump(LT82716ME) provides uniform pressure and delivery on the up and
down stroke
2 6'(1.85mts) High Pressure Grease Delivery Hose(LT75072ME)
3. High Pressure Grease Delivery Control Valve(LT740ME)
4. Rapid Disconnect Coupler(815ME) & Air Nipple (11660ME); Air Motor Muffler(LT2601ME)
5. Pump SPECS: Pump Tube Length 15-3/4"(40.01cm) &
Diameter 1.0"(2.54CM) made for 25LB(11.3KG)- 50LB(22.7KG) Pails and Drums; Air Motor
Height: 11.0"(27.94CM); Overall Height of Unit: 26- 3/4"(67.9CM)
6. Follower Plate (LT91500M) Solid Steel for Straight Sided
Pails; (1.0"(2.54CM) Diameter) (other follower plate options available; see below)
7. Other Follower Plates Available: LT84775ME Molded Rubber
Follower Plate (Diameter 1.0”(2.54CM)); LT91500ME: Follower Plate w/ rubber ringed
follower plate (Diameter 1.0”(2.54CM))
8. Steel Drum Cover with screw downs and Knurl and Coupler
assembly to adjust Height to accomodate Pails from 25-50 lbs capacity (91144M). (Drum
Cover Opening 1-1/4"(3.175CM)) Cover Diameter: 12-5/8" (32.07CM)
9: Height Adjuster (coupler) for the drum cover to adjust the
level of the pump in the pail if needed.
10. Output: 80cu in/minute of grease at 100PSI of NLGI #2 at
70 DEG ambient TEMP (.35cu in/cycle)
11. Air Inlet 1/8"NPT(f); Lube Outlet: 1/4"NPT(f);
12. These High Pressure Grease Pumps incorporate a 20 cu in Air Motor Design
13: New Downtube Packings made of Viton / Teflon for longer
life
14. MAX Air Pressure: 150PSI; Recomended: 80-100PSI; MAX
Grease Pressure: 7500PSI; Recomended: 5000 PSI; Note: Pump life reduces considerably if
operating above the recommended air pressure.
15. One Year Warranty against Defective Materials, Workmanship and
Labor
16. All Pumps are Pressure Tested Statically and Dynamically at the
Factory in NLGI#2 Grease for Output, Pressure, Performance and Quality.
17. Additional Accessories Available: LT82103ME Grease
Strainer for Pump Tube; LTA5253ME “Z” Swivel for the Control Valve; LT84191ME
Roll-A_Around Band Dolly; LT66645ME Locking Swivel 1/4"(m) x 1/4"(f) ;
18. Optional Hoses Available(See Below):
LT75120ME 10ft X ¼” High Pressure Grease
Hose w/ 1/4" npt(m) couplings
LT75240ME 20ft X ¼” High Pressure Grease Hose w/ 1/4" npt(m) couplings
LT75360ME 30ft X ¼” High Pressure Grease Hose w/ 1/4" npt(m) couplings
LT75480ME 40ft X ¼” High Pressure Grease Hose w/ 1/4" npt(m) couplings
LT75600ME 50ft X ¼” High Pressure Grease Hose w/ 1/4" npt(m) couplings
19. Complete Repair Kits
Available:
R83054M: Simple Repair Kit for Grease Pumps LT82716ME
R83054ME; Complete Repair Kit for Grease Pumps
R83000ME: Air Motor Repair Kit for LT82716ME
R83001ME: Down Tube Repair Kit for LT82716ME
20. Other Information: Weight and
Dimensions:
BOX Weight: 28LBS (12.7KG)
BOX DIMS: Length: 28.0"(71.2cm) X Width:14"(25.6cm) X Height:
6-1/2"(16.5cm)
21: Price
22: Download complete pdf file on
LT989ME
For Additional Information or Technical Information, send us an email from this web
page at the address below. Please specify the Model Number. Please include your
name, address, city, state, zip, Telephone Number and Fax Number in the email and we will
send you the requested Information.
