| DESCRIPTION | LT1292ME |

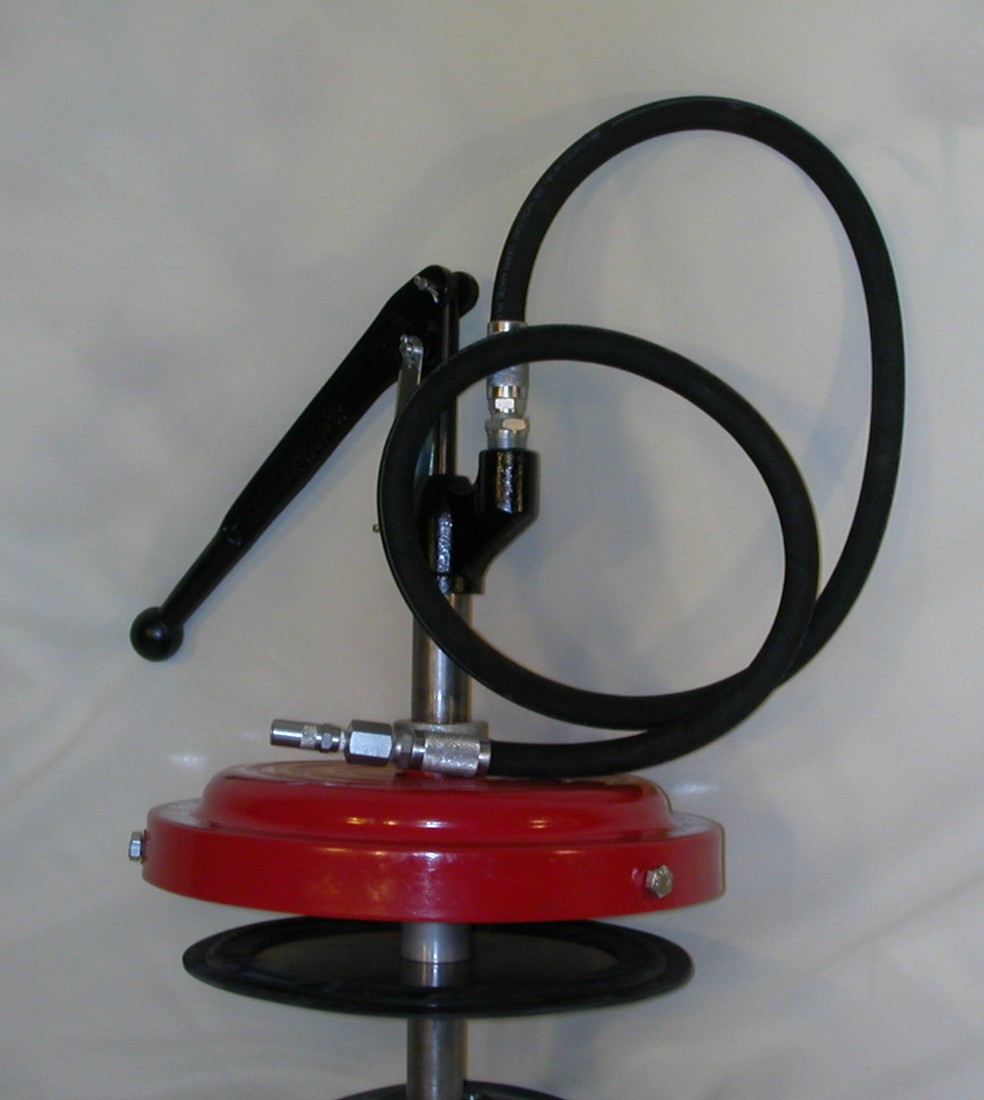

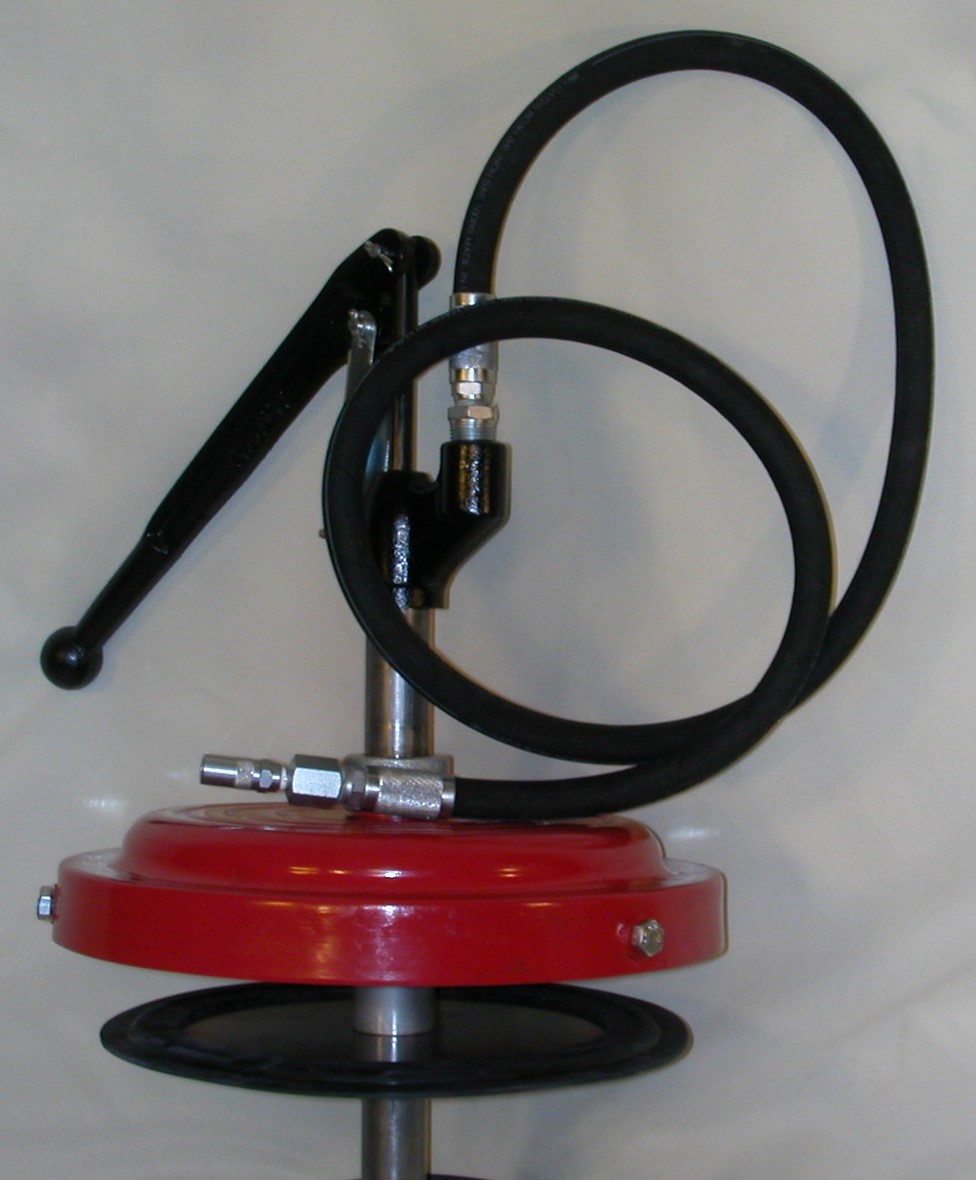

| High Pressure Manual Clamp On Grease
Bucket Pump (Clamp on Pail Pump) with Cover & Follower Plate (Clamp On unit) 35LB (5
Gallon) Refinery Container. 1: Includes High Pressure Manual Grease Pump 2: 5FT(1.52mts) High Pressure Grease Delivery Hose 3: High Pressure Grease Coupler(LT5852ME) 4: Develops a Max Pressure of 3500 LBS(PSI) 5: Lube Outlet: 1/2"(f)NPT 6: Steel Pail Cover Painted in Red with screw downs and Knurl and Coupler assembly to adjust the Height to accomodate Pails from 25-50 LBS capacity. Diameter to fit a standard 35LB (5 Gallon) Refinery Pail; Outer Diameter: 12-5/8"(32.1CM); Inner Diameter: 12-3/8" (31.4CM); 7: Height Adjuster (coupler) for the drum cover to adjust the level of the pump in the 35LB (5 Gallon) pail if needed. 8: Pump Tube Length 14-3/8"(36.5CM) & Diameter 1-1/4"(3.175CM) Flared to 1-3/8"(3.5CM); Overall Height: 21-1/2"(54.6CM) 9: Follower Plate with rubber outer ring; Outer Diameter: 11-1/8"((28.3CM); Includes a 5/8"(1.59CM) foldable rubber lip around the outer diameter; Inside Diameter to insert Downtube: 1-1/4"(3.175CM); Fits a standard 35LB (5 Gallon) Refinery Container; Conical or Straight Shaped. 10: Solid Cast Pump Handle 13-1/2"(34.3CM) Long x 1"(2.54CM) Diameter for long strokes and pumping leverage. Stroke Length: 3.0"(7.62CM) 11: Output: .28oz/stroke or 11 oz/ min of NLGI#1 @ 80 deg F 12: One year Limited Warranty against Defective Materials, Workmanship and Labor 13: All Pumps are Pressure Tested Statically and Dynamically in NLGI#2 Grease for Output, Pressure, Performance and Quality. 14: Replacement and Repair Parts Available. 15: Other Information: Weight and Dimensions: BOX Weight: 22LBS (9.98KG) BOX DIMS: Length: 14.0"(35.6cm) X Width:13.0"(33.02cm) X Height: 16"(40.64cm) 16: Price 17: Download PDF File on LT1292ME |
 |
|---|---|
 |
