35LB GREASE
DRUM COVER
PAYPAL creditcards.gif (1589 bytes) discov1.gif (6373 bytes)
We make it EASY for you to do   business with Lube Technology
PRICE AVAILABILITY SELECTION CONVENIENCE Mail: Lube Technology
4 ways to Order!! Fax: 1-616-676-1287 TEL: 1-616-676-1792 Email: sales P.O. Box 456, Ada, MI. 49301
DESCRIPTION LT91144M
35LB (5 Gallon) (15.8KG) (Grease Drum Cover w/ Height Adjuster

1: 35lb Grease Drum Cover w/ Knurl and Coupler (Height Adjuster) Assembly for use with 35LB Drum Pumps and LT82716ME Pump; Uses Knurl and Coupler Assembly 91144CP to attach pump to cover.
2: Dimensions of Cover:
Outside Cover Diameter: 12-5/8"(32.07CM);
DIA of Pump Opening in Cover 1-1/4"(3.175CM);
Inside Cover Diameter: 12-1/2"(31.75CM)
Cover Height: 2-5/8"(6.67CM)
3: 3 Set Screws on the Outer edge to adhere the cover and mounted pump to the drum
4: Fits a Standard 35LB (5Gallon) (15.8KG) Grease Drum

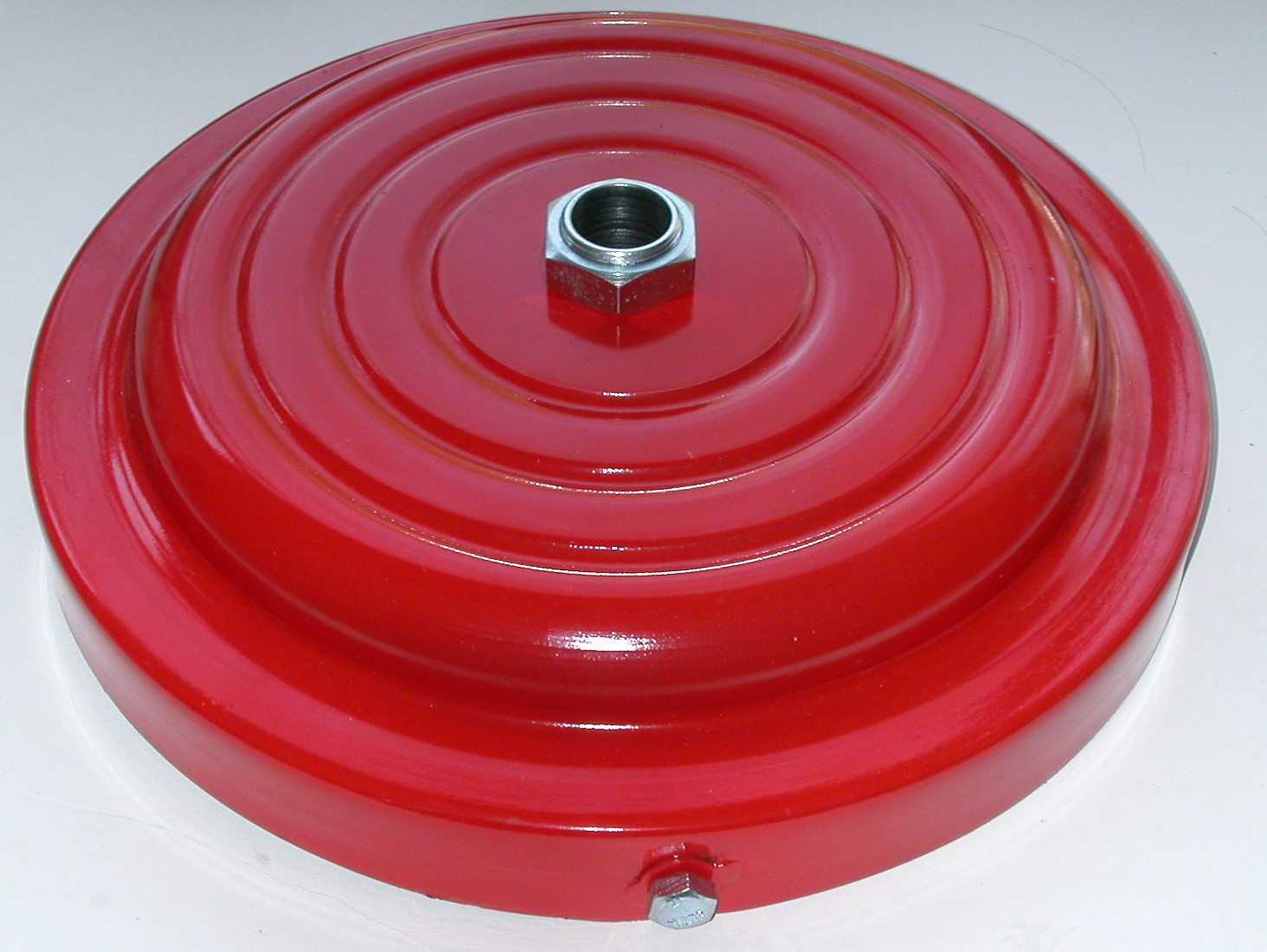

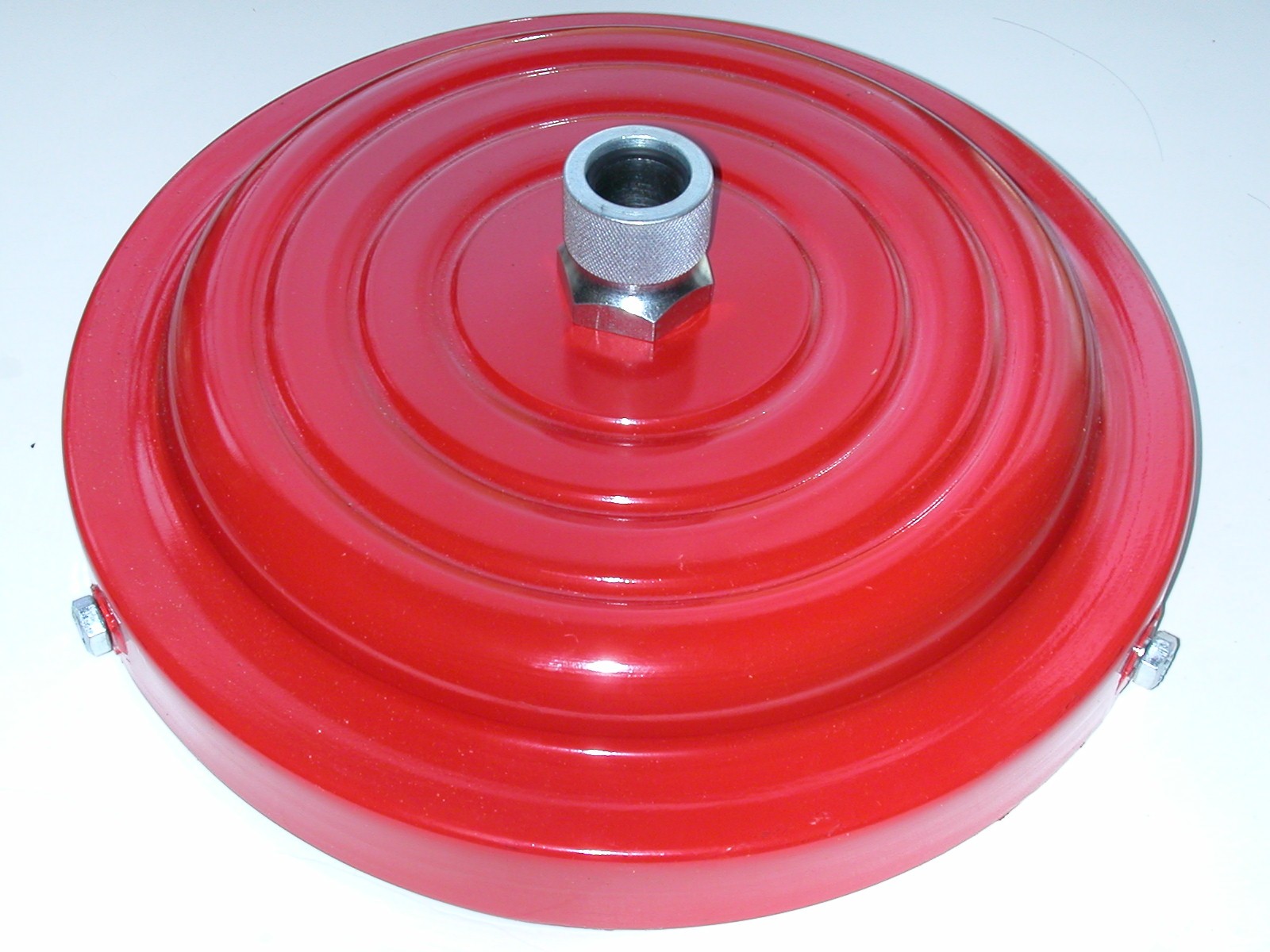

5: 91144CP Knurl and Coupler adheres pump to cover for quick connections and disconnections. Coupler can be mounted in either direction to give additional depth for a deeper pail.  Photos show Reversible Height Adjuster.
5: For use with all Air Operated High Pressure 35LB (15.8KG) Grease Pumps and all Oil Pumps
6: Finished in Bright Red both sides.
7: Application: Installed Lube Systems with Standard 35LB (5 Gallon) (15.8KG) Grease Pails
8: BOX Weight: 5LB(2.27KG)
9: BOX Dimensions: 13" X 13" X 3" (33CM X 33CM X 7.6CM)
10: Price
11: Download PDF File on LT91144M.
