| DESCRIPTION | LT8121ME | ||||||||
| DESCRIPTION:

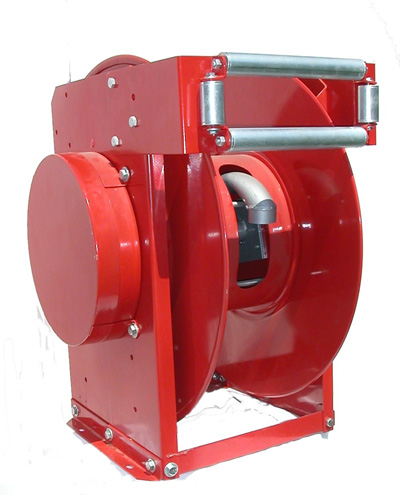

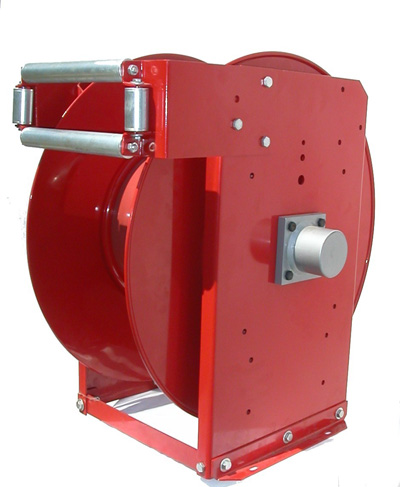

Super Duty High Flow Reel; Extra Large Hose Capacity 1: Designed for use with 50ft (15.2 mtrs) of 1-1/4" (3.175 cm) ID hose or smaller (maximum capacity) 2: Suitable for gasoline, diesel fuel, fuel oil, petroleum oil, water, transmission fluids, airfcraft fuels, and air. 3: For hazardous fluids, hose with static grounding wire must be used and furnished by user. 4: For aircraft fuels, a separate static grounding cable must be furnished by user. 5: Max. Operating pressure: 375 PSI; 6: Inlet and Outlet threads: 1-1/4" (3.175 cm) NPT female. 7: Includes No. 84122 ball stop; adjustable for use with 1-3/4" (4.45 cm) OD or 1-7/8" (4.76 cm) OD hose; 8: Reel Size: 26-1/2" (67.3 cm) high x 18-3/4" (47.6 cm) wide x 25-1/2" (64.8 cm) deep 9: Type of Hose: Low Pressure: 375 PSI; Inlet / Outlet: 1-1/4" (3.175cm)(F); Can accomodate smaller size hoses with fittings and adapters. 10: Sheath Width Outside to Outside: 10-1/4" (26.0 cm). 11:Sheath Width Inside to Inside: 10.0" (25.4 cm). 12: Sheath Depth: 6-27/32" (17.4 cm). 13: Diameter of Sheath: 24.0" (61 cm). 13: Base: 14-1/2" (36.8 cm) x 15" (38.1 cm). 14: Base Thickness: 15: Length of Arm: NA 16: Solid Metal Rollers with a diameter of: 10.0" (25.4 cm) x 2-3/4" (7.0 cm). 17: Applications: Oil, ATF, Antifreeze, Water, Air; Combustible, Fuel Oil, Diesel, Gas, Aircraft Fuels, Petroleum Oils, and Transmission Fluids. 18: Designed for use with Hose: SAE100R1 3/4"ID(1.91 cm) X 1-1/4" OD (3.175 cm) 50 FT (15.2 mtr) 19: Approximate Weight: with 50 ft (15.2 mtr) of hose and nozzle pressurized to 150 PSIG with SAE 10 weight Oil: 195 LBS (88.5 kgs). 20: BOX Weight: 80LBS (36.3 kgs) 21: BOX Dimensions: 24" x 24" x 16" (61cm x 61cm x 40.6cm) 22: Application: Installed Lube in Garage, Maintenance Facility, Quick Lube, Industrial, Factory, Mines, Mining Vehicle, Service Vehicle, Lube Truck 23: Can also accomodate the following hoses. SAE100R3 73 50 FT(15.2mtrs) SAE100R1 78 25 FT(15.2mtrs) 3/4"ID X 1-1/4" OD SAE 100R3 74A 40 FT (12.2mtrs) SAE100R6 74 50 FT(15.2mtrs) 24: It is the responsibilty of the user to determine proper grounding techniques when using this reel and flammable liquids 25: Price 26: Download PDF file. |
 |
||||||||
 |
|||||||||
| Description | Hose Capacity | Hose Type | Hose Length | Inlet | Outlet | Working Pressure |
Sheave Width |
Width | Depth |
|---|---|---|---|---|---|---|---|---|---|
| Super Duty High Flow Reel |
1-1/4" (3.175CM) OD LOW PRESSURE | 100R3 | 50 FT 15.2 mtrs |
1-1/4" 3.175CM |
1-1/4" 3.175CM |
375 PSI | 10" 25.4CM |
18-3/4" 47.6CM |
16-3/4" 42.5CM |
