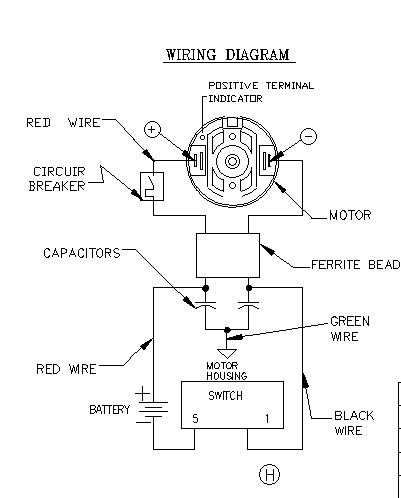

| 1400 Power Luber Wiring for Switch and Wiring Diagram | |||
| NOTE #1 | This is an update on the FAQ's for the Original 1400 Power Luber; All of the 1400 questions are grouped together but not in any particular order. Read through to find your problem. If your question in not in there, email me with your question. | ||
| DATE / ISSUE | QUESTION | ANSWER | |
| New Updated Switch 286095 March 2016 | |||

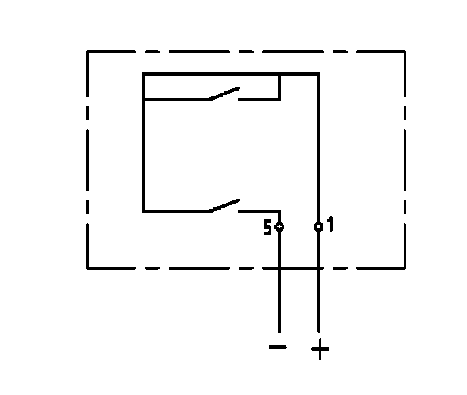

| Note: New Switch:
Replaces the old and no jumper wire on the new: Directions. The center
switch wire gets pushed into the hole after backing out the Phillips screw
and screwed in tight. The other wire gets pushed into the metal flap next to
the corresponding number hole near the edge of the switch. When you give the
wire a slight tug it automatically locks in place due to the downward angled
center notched metal flap. It's kind of like a finger trap, the wire can be pushed in but not pulled out unless you push the flap down with a sharp object as you pull. Also make sure they know it's an updated switch, there is NO jumper wire on the new switch!! |
|
||
| March 2016
Hello Lincoln Tech Service: I have a 1400 power luber trigger switch
problem. Basically, the customer got the new switch 286095, for a 1400 power
luber. |
|||
| SECOND ANSWER | SECOND
ANSWER: Note: New Switch: Replaces the old and no jumper wire
on the new: Directions. The center switch
wire gets pushed into the hole after backing out the Phillips screw and screwed in tight.
The other wire gets pushed into the metal flap next to the corresponding number hole near
the edge of the switch. When you give the wire a slight tug it automatically locks in
place due to the downward angled center |
||
