POWERMASTER II MEDIUM PRESSURE OIL PUMPS
MOTOR OIL, ATF, GEAR LUBE AND OTHER SOLUTIONS
BALL TYPE MEDIUM PRESSURE PUMPS
MODEL NUMBER	RATIO	PUMP TUBE TYPE	AIR MOTOR	DIAMETER IN. / MM	PUMP TUBE	MATERIAL OUTLET	OUTPUT PER CYCLE CU. IN / CC	APPROX. CYCLES PER GAL/LITER
Price???? 1901 Output and Air Specs	12:1	55 gal	82730 PRICE?	4 1/4" / 108	82790 PRICE?	3/4" NPTF	9 / 148	26 / 7
OBSOLETE (INFO ONLY) 1905 Output and Air Specs	12:1	16 gal	82730 PRICE?	4 1/4" / 108	82773 PRICE?	3/4" NPTF	9 / 148	26 / 7
Price???? 1931 Output and Air Specs	4:1	55 gal	82737 PRICE?	2 1/2" / 57	82790 PRICE?	3/4" NPTF	9 / 148	26 / 7
OBSOLETE (INFO ONLY) 1936 Output and Air Specs	4:1	16 gal	82737 PRICE?	2 1/2" / 57	82773 PRICE?	3/4" NPTF	9 / 148	26 / 7

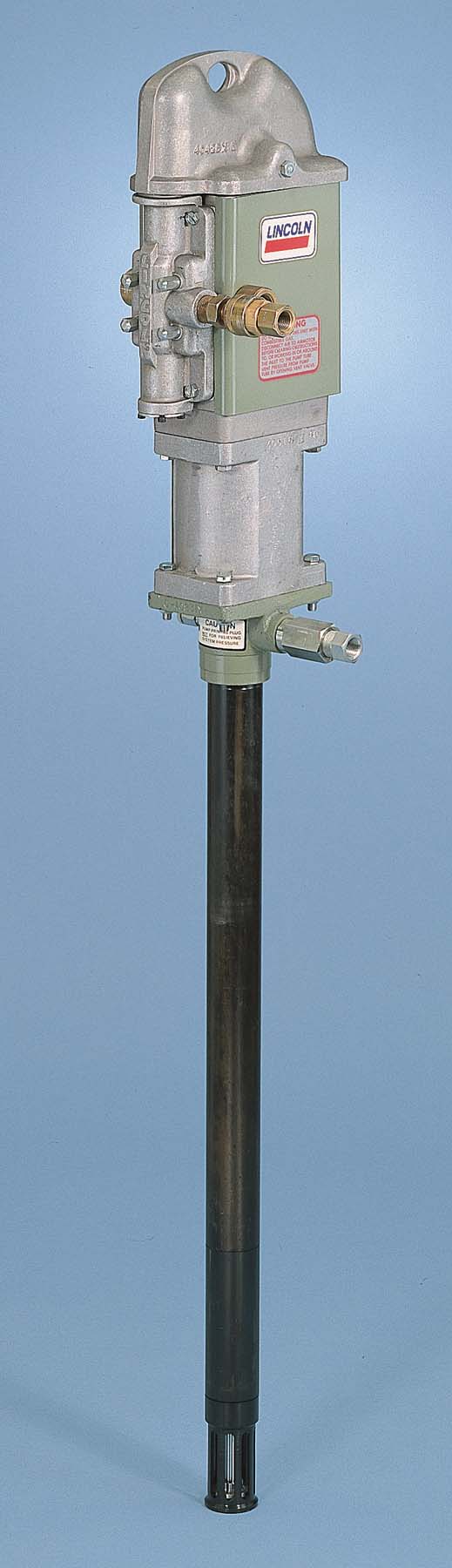

Price???? 1952 Output and Air Specs	6:1	55 gal	82895 PRICE?	3" / 76	82790 PRICE?	3/4" NPTF	9 / 148	26 / 7
OBSOLETE (INFO ONLY) 1955 Output and Air Specs	6:1	16 gal	82895 PRICE?	3" / 76	82773 PRICE?	3/4" NPTF	9 / 148	26 / 7

	GALLONS / LITERS PER MINUTE				AIR CONSUMPTION PER CYCLE
MODEL NUMBER	@30 CPM	@50 CPM	@70 CPM	MIN. ID AIR SUPPLY HOSE IN. / MM	SCFM@ 70 PSIG	M3/MIN. @ 5 BAR	SCFM@ 100 PSIG	M3/MIN. @ 7 BAR
1901	1.1 / 4.4	1.9 / 7.4	2.7 / 10.3	3/8" / 10	2.5	0.007	0.31	0.009
1905	1.1 / 4.4	1.9 / 7.4	2.7 / 10.3	1/2" / 12	0.5	0.014	0.62	0.017
1931	1.1 / 4.4	1.9 / 7.4	2.7 / 10.3	3/8" / 10	0.17	0.005	0.21	0.006
1936	1.1 / 4.4	1.9 / 7.4	2.7 / 10.3	3/8" / 10	0.17	0.005	0.21	0.006
1952	1.1 / 4.4	1.9 / 7.4	2.7 / 10.3	1/2" / 12	0.5	0.014	0.62	0.017
1955	1.1 / 4.4	1.9 / 7.4	2.7 / 10.3	3/8" / 10	2.5	0.007	0.31	0.009
** All PowerMaster pumps include 12018, 3/4" NPTF(m) x 1/2" NPTF(f) bushing in the material outlet.
NOTE: Model number with "-1" indicates model including bung bushing (ex., 1935-1). Model number with "-2" indicates model including drum cover (ex., 1935-2).

POWERMASTER II PUMPS
MOTOR OIL, ATF, GEAR LUBE AND OTHER SOLUTIONS
MEDIUM PRESSURE STUB PUMPS
MODEL NUMBER	RATIO	PUMP TUBE TYPE	AIR MOTOR	DIAMETER IN. / MM	PUMP TUBE	MATERIAL OUTLET	OUTPUT PER CYCLE CU. IN / CC	APPROX. CYCLES PER GAL/LITER

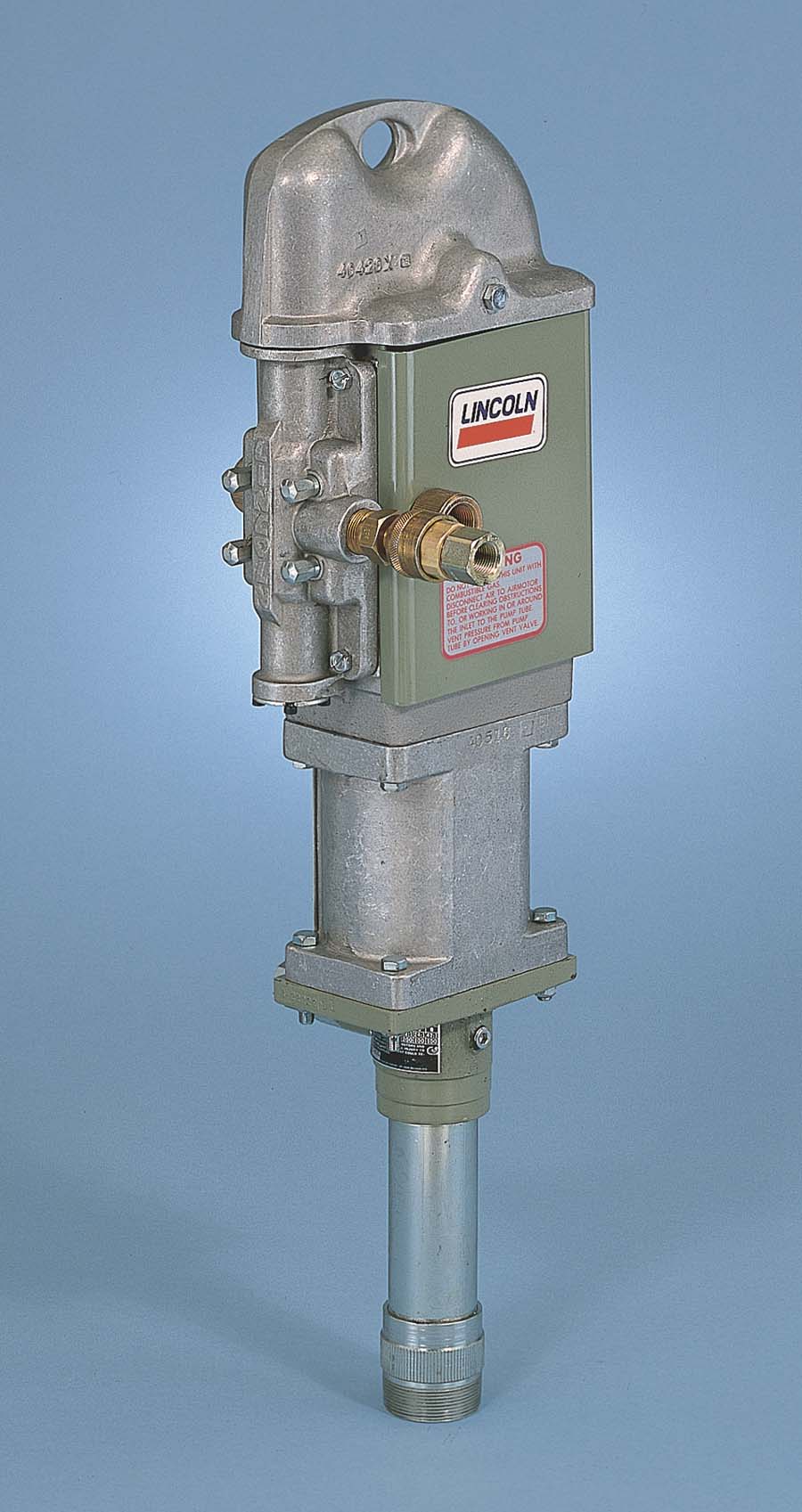

Price???? 1914 Output and Air Specs	12:1	stub	82730 PRICE?	4 1/4" / 108	84335 PRICE?	3/4" NPTF	9 / 148	26 / 7
Price???? 1940 Output and Air Specs	4:1	stub	82737 PRICE?	2 1/2" / 57	84335 PRICE?	3/4" NPTF	9 / 148	26 / 7
Price???? 1951 Output and Air Specs	6:1	stub	82895 PRICE?	3" / 76	84335 PRICE?	3/4" NPTF	9 / 148	26 / 7

	GALLONS / LITERS PER MINUTE				AIR CONSUMPTION PER CYCLE
MODEL NUMBER	@30 CPM	@50 CPM	@70 CPM	MIN. ID AIR SUPPLY HOSE IN. / MM	SCFM@ 70 PSIG	M3/MIN. @7 BAR	SCFM@ 100 PSIG	M3/MIN. @7 BAR
1914	1.1 / 4.4	1.9 / 7.4	2.7 / 10.3	1/2" / 12	0.5	0.014	0.62	0.017
1940	1.1 / 4.4	1.9 / 7.4	2.7 / 10.3	3/8" / 10	0.17	0.005	0.21	0.006
1951	1.1 / 4.4	1.9 / 7.4	2.7 / 10.3	3/8" / 10	2.5	0.007	0.31	0.009
** All PowerMaster pumps include 12018, 3/4" NPTF(m) x 1/2" NPTF(f) bushing in the material outlet.
NOTE: Model number with "-1" indicates model including bung bushing (ex., 1935-1). Model number with "-2" indicates model including drum cover (ex., 1935-2).

POWERMASTER II PUMPS
MOTOR OIL, ATF, GEAR LUBE AND OTHER SOLUTIONS
SHOVEL TYPE MEDIUM PRESSURE PUMPS
MODEL NUMBER	RATIO	PUMP TUBE TYPE	AIR MOTOR	DIAMETER IN. / MM	PUMP TUBE	MATERIAL OUTLET	OUTPUT PER CYCLE CU. IN / CC	APPROX. CYCLES PER GAL/LITER
Price???? 1902* Output and Air Specs	24:1	55 gal	82730 PRICE?	4 1/4" / 108	82791 PRICE?	3/4" NPTF	5 / 82	46 / 12
OBSOLETE (INFO ONLY) 1906* Output and Air Specs	24:1	16 gal	82730 PRICE?	4 1/4" / 108	82840 (DISC)	3/4" NPTF	5 / 82	46 / 12
Price???? 1932 Output and Air Specs	8:1	55 gal	82737 PRICE?	2 1/2" / 57	82791 PRICE?	3/4" NPTF	5 / 82	46 / 12
Price???? 1933 Output and Air Specs	13:1	55 gal	82737 PRICE?	2 1/2" / 57	82792 PRICE?	3/4" NPTF	2.8 / 46	83 / 22
OBSOLETE (INFO ONLY) 1934* Output and Air Specs	25:1	55 gal	82737 PRICE?	2 1/2" / 57	82793 PRICE?	3/4" NPTF	1.6 / 26	144 / 39
OBSOLETE (INFO ONLY) 1937 Output and Air Specs	8:1	16 gal	82737 PRICE?	2 1/2" / 57	82840 (DISC)	3/4" NPTF	5 / 82	46 / 12
OBSOLETE (INFO ONLY) 1938 Output and Air Specs	13:1	16 gal	82737 PRICE?	2 1/2" / 57	82841 PRICE?	3/4" NPTF	2.8 / 46	83 / 22
OBSOLETE (INFO ONLY) 1939* Output and Air Specs	25:1	16 gal	82737 PRICE?	2 1/2" / 57	82883 PRICE?	3/4" NPTF	1.6 / 26	144 / 39

	GALLONS / LITERS PER MINUTE				AIR CONSUMPTION PER CYCLE
MODEL NUMBER	@30 CPM	@50 CPM	@70 CPM	MIN. ID AIR SUPPLY HOSE IN. / MM	SCFM@ 70 PSIG	M3/MIN. @7 BAR	SCFM@ 100 PSIG	M3/MIN. @7 BAR
1902*	.6 / 2.4	1 / 4.1	1.5 / 5.7	1/2" / 10	0.5	0.014	0.62	0.017
1906*	.6 / 2.4	1 / 4.1	1.5 / 5.7	1/2" / 10	0.5	0.014	0.62	0.017
1932	.6 / 2.4	1 / 4.1	1.5 / 5.7	3/8" / 10	0.17	0.005	0.21	0.006
1933	.4 / 1.4	.6 / 2.3	.8 / 3.2	3/8" / 10	0.17	0.005	0.21	0.006
1934*	.2 / .8	.3 / 1.3	.5 / 1.8	3/8" / 10	0.17	0.005	0.21	0.006
1937	.6 / 2.4	1 / 4.1	1.5 / 5.7	3/8" / 10	0.17	0.005	0.21	0.006
1938	.4 / 1.4	.6 / 2.3	.8 / 3.2	3/8" / 10	0.17	0.005	0.21	0.006
1939*	.2 / .8	.3 / 1.3	.5 / 1.8	3/8" / 10	0.17	0.005	0.21	0.006
* Not to be used with meters.
** All PowerMaster pumps include 12018, 3/4" NPTF(m) x 1/2" NPTF(f) bushing in the material outlet.
NOTE: Model number with "-1" indicates model including bung bushing (ex., 1935-1). Model number with "-2" indicates model including drum cover (ex., 1935-2).
