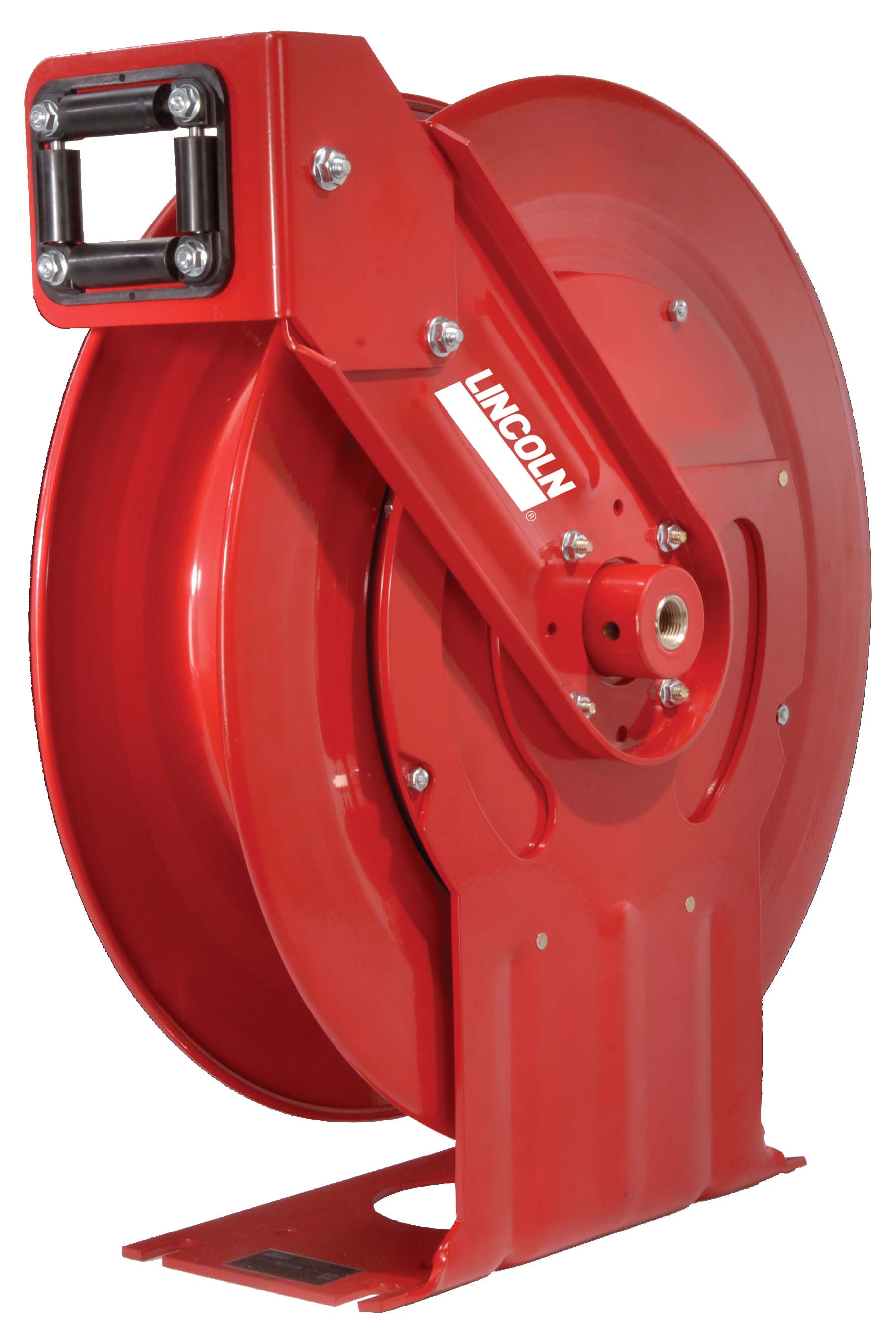

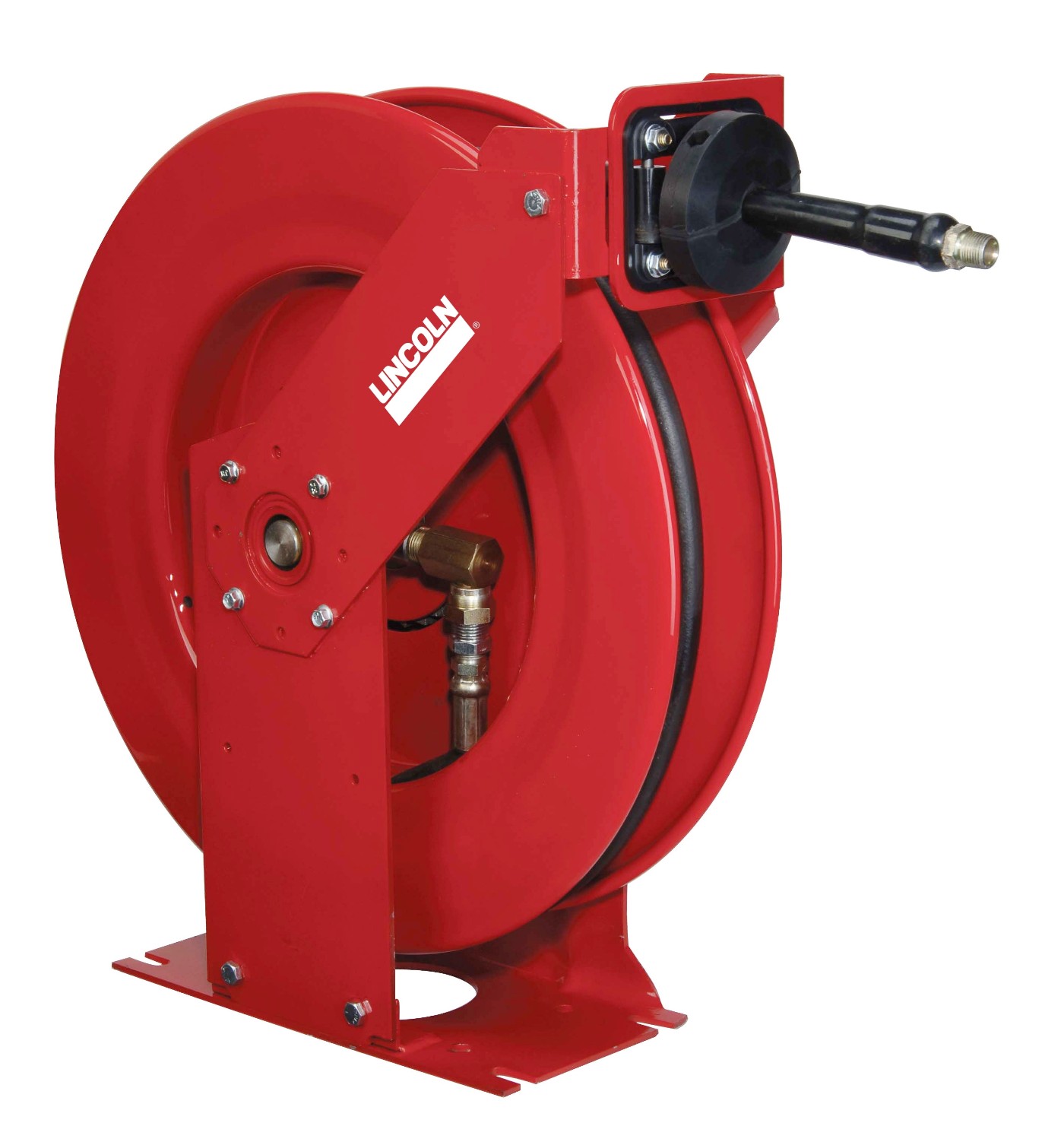

LINCOLN Liquid Fluid (LFR)Series Lubrication Reels
Lincoln's Fluid Reel Series (LFR) incorporates both new and proven design features and capabilities. • Advanced design provides consistent, repetitive performance. • Top-of-the-line features in our most popular reel. • Engineered for durability and reliability. • Low-, medium- and high-pressure models available.

    Features

  • Low-pressure, fully-ported swivel designed to be corrosion resistant when used for air and water-based solutions.
  • Medium-pressure, fully-ported swivel provides unrestricted flow, dispensing higher volumes of fluid.
  • High-pressure swivel includes quick-disconnect for easy hose attachment.
  • Two hose clamps perfectly spaced to prevent the hose from locking in the fully extended position.
  • Easily accessible-yet fully contained-power springs designed for optimum performance at various operating pressures.
  • Dual needle bearings reduce the stress on the spring, providing smooth, balanced operation during both hose extension and retraction.
  • Rounded edges on hose guide face enhances safety.
  • Electroless nickel plated, corrosion-resistant, low-pressure axle prevents contamination of fluid and restriction of flow.
  • Double ratchet teeth provide solid latch to lock hose in multiple usable positions.
  • Mounting base accepts Lincoln No. 82206 mounting pattern and is slotted at both ends for easy installation.
  • Powder-coat finish creates a corrosion-resistant reel that stands up to the elements.

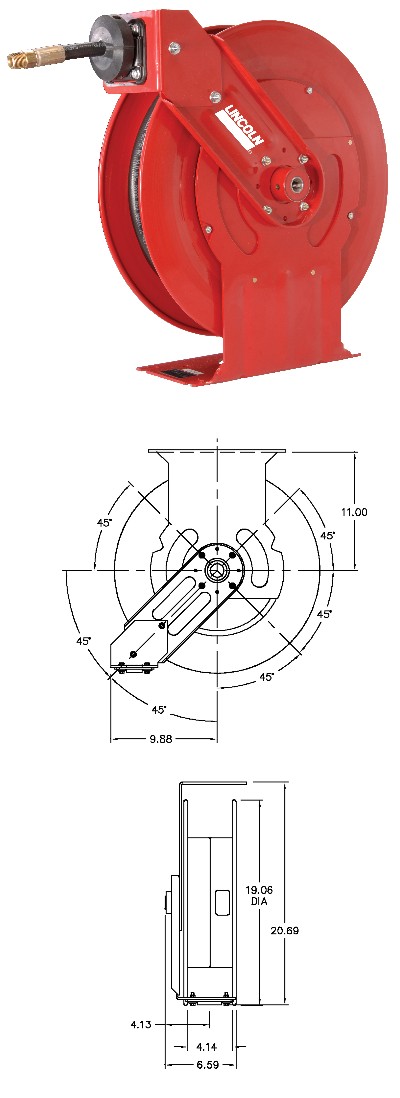

(LFR SERIES) BARE REEL SPECIFICATIONS LIQUID FLUID SERIES
Pressure
Application		 Hose Diameter Max. Working
Pressure psi (bar)		 94100.jpg (26906 bytes)
High 1/4" 5000 (340)
3/8" & 1/2" 4000 (272)
Medium 1/2" 1,500 (102)
Low 1/4" & 3/8" 250 (17)
1/2" 200 (13.6)
